Wenzhou TENGBO Valve Parts Co., Ltd.
Soft-seated Ball Valve Seat F316+RPTFE

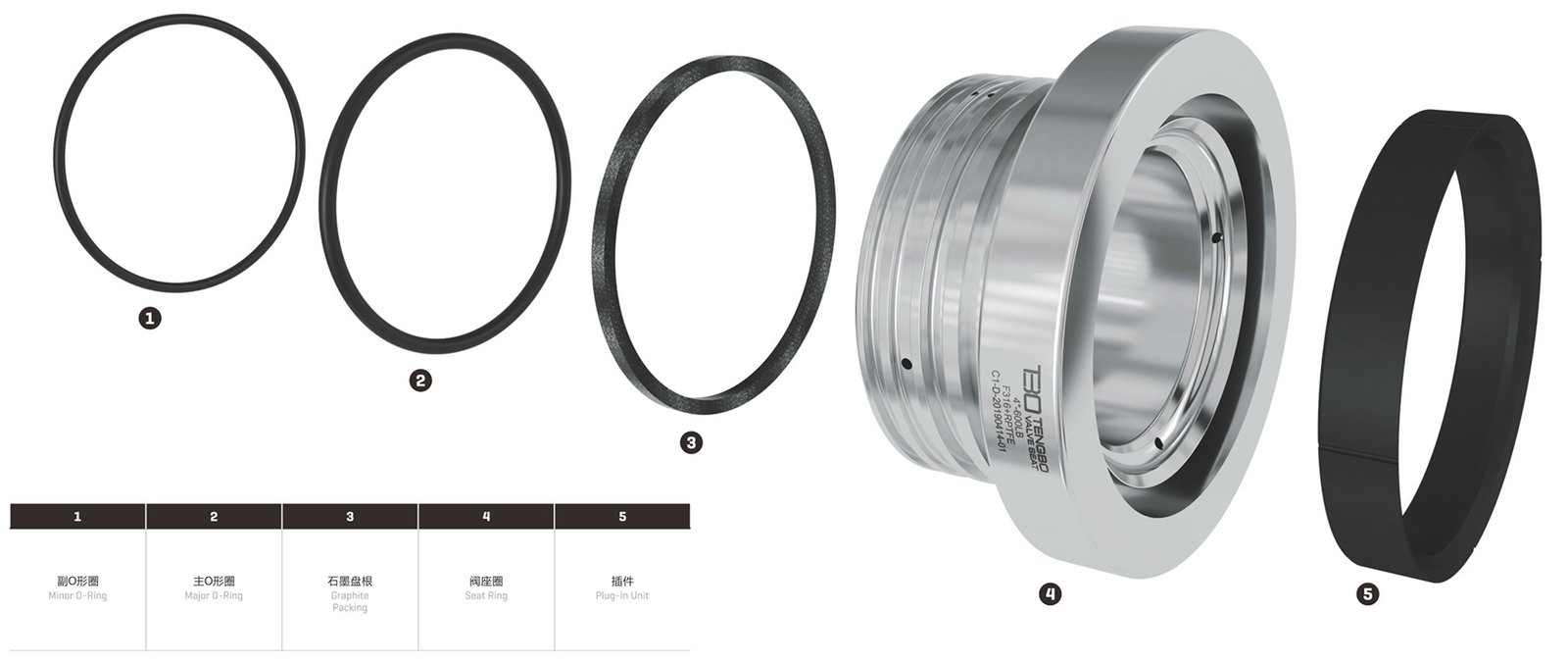

Structure:
The valve seat is inlaid with engineering plastic plug-in unit in metal base, and is fnished after mounting to form a sealing pair with the sphere. The plug-in unit is made of thermoplastic plastics and is pressed into the base by a hydraulic press to achieve tight fit.
Characteristic
Tengbo base groove has a unigue pre-loaded and anti-release structure, so that the plug-in unit is locked in the groove, not blown out. By eliminating internal and external roling and plate locking, not only the processing is reduced, but also the damage of coating is avoided, as a result the valve seat is stable in performance and beautiful in appearance. The spring ofthe seat is mounted at the tee head of the base, which can effectively avoid the dirt in the medium to impact on the spring. The effective thrust at the back can be controlled to be less, the valve can be opened and closed easier under total pressure difference.
Application
This structure is recommended for medium and high pressure operation, Tengbo recommended size is DN50-DN600, pressure grade PN63-PN420,Class400-Class2500.
