Products
Wenzhou TENGBO Valve Parts Co., Ltd.
Characteristic
The plastic plug-in unit wipes off the dirt on the surface of the sphere during opening and closing. which has a good protective effect on the sealing ring. Plug-in unit prevents the ball and valve seat from scratching due to dimension deviation during sphere installation. When there is a need for grease injection, a sealing ring is formed by the sealing grease between the elastomer and the plug-in unit. Emergency sealing can be achieved with only a small amount of grease.
Application
It is recommended to be used in medium or high pressure and medium or large caliber medium containing natural gas with frequently opening and closing. The recommended dimensions of Tengbo are DN150-DN600, pressure grade PN16-PN150,Class150-Class900.

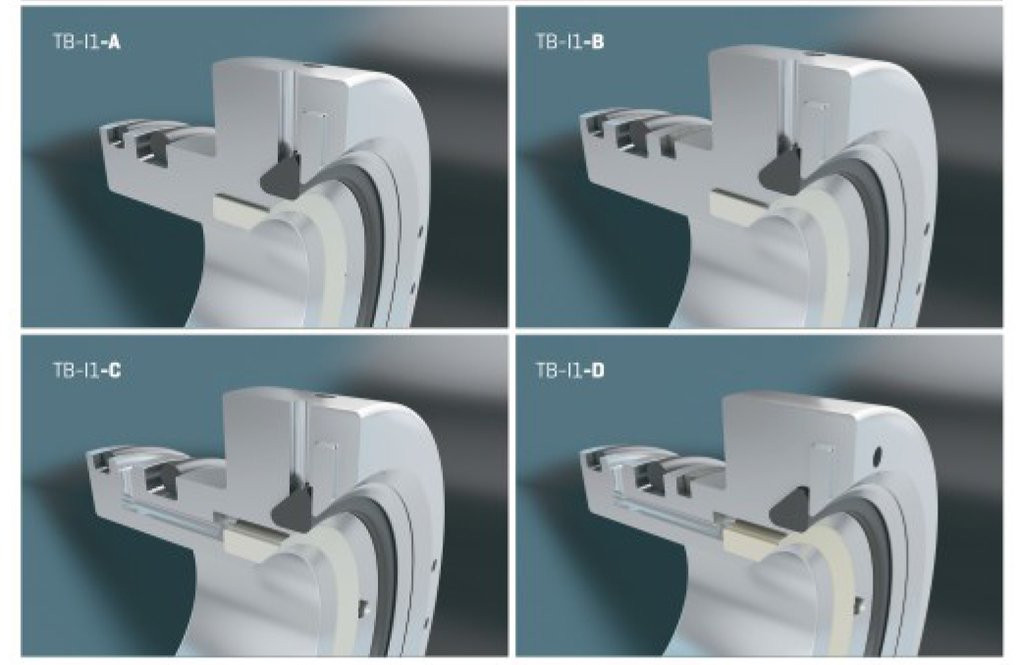

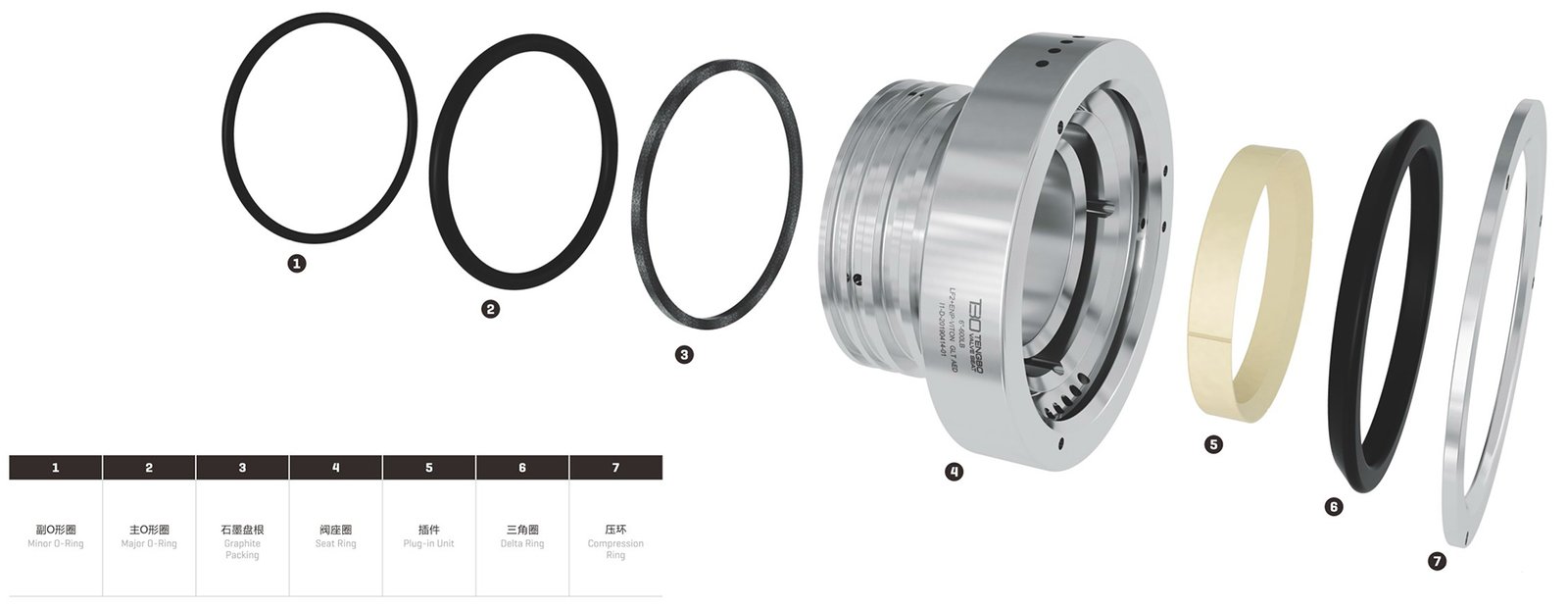

Product Structure
