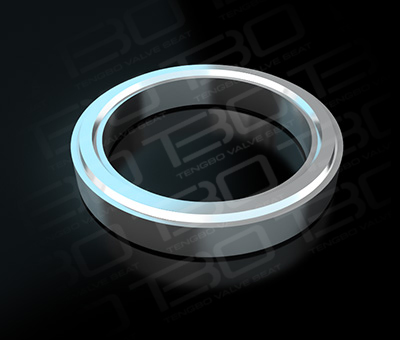

| Model： |
TB-J1 |
| Structure： |

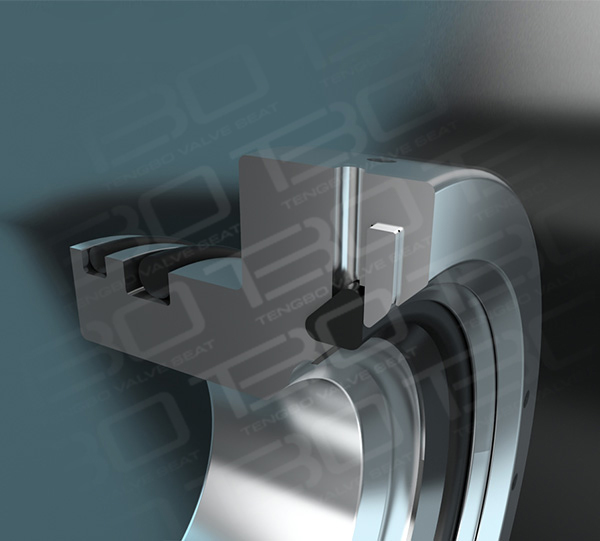

The valve seat is composed of a high performance anti-pressure explosion (AED) elastomer sealing ring and a ball in the metal base to form a sealing pair, and a double sealing pair composed of an external surface coating and a ball body. The valve seat is equipped with a metal elastic gasket to limit and fix the position. |
| Characteristic： |
The primary seal of the valve seat is metal seal, and the secondary seal is elastomer seal, which ensures zero leakage of the seal. The metal seal isolates the particulate matter in the medium, protects the elastomer seal ring, prolongs the service life of the valve and plays a maintenance-free role. |
| Apply： |
This structure is recommended to be used in medium and high pressure with medium and large diameter and medium containing part of solid particles. Tengbo recommended size is DN150-DN600, pressure grade PN16-PN150, Class150-Class900. |
