    Valve Seat TB-H1

    Valve Seat TB-H1

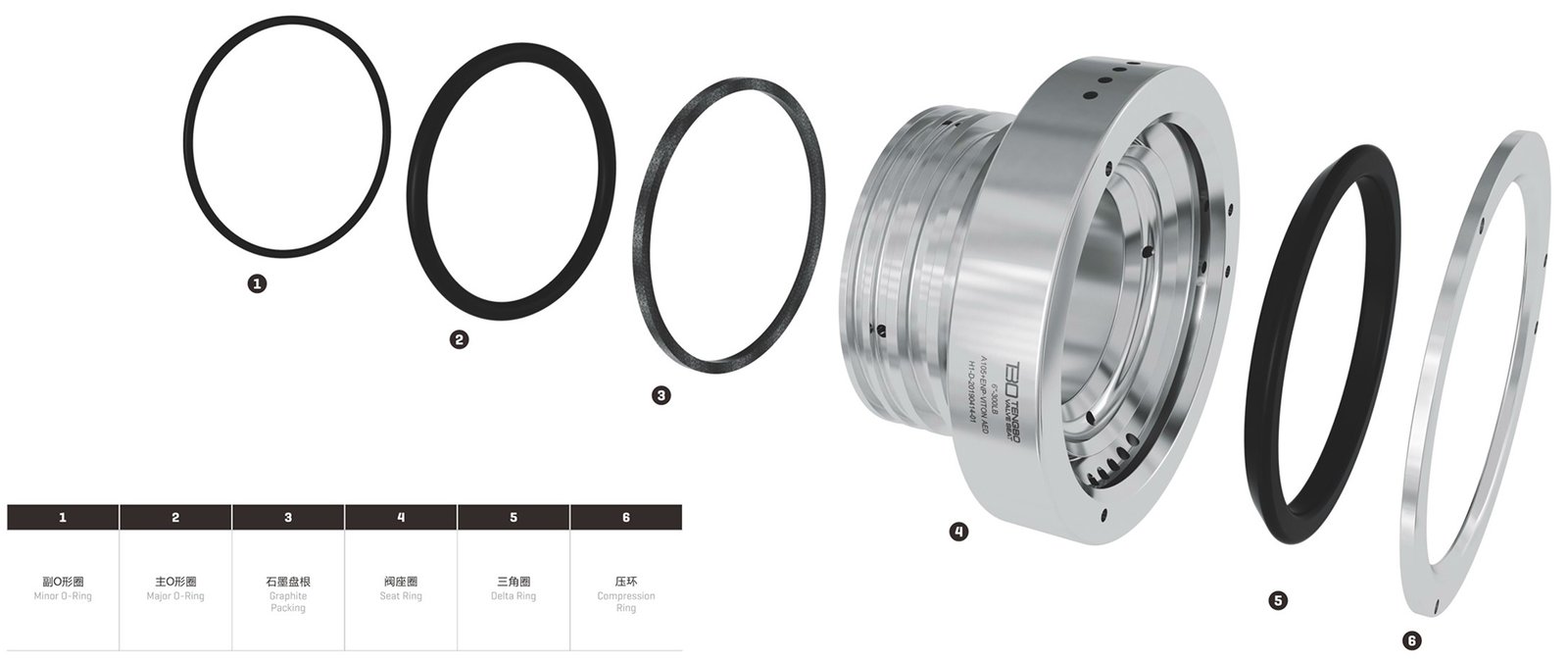

    Structure:
    The seat consists of a high-performance anti-pressure explosion [AED] elastomer seal ring and a sphere, which is installed in the metal base to form a sealing pair. The metal compression ring is mounted for limit and fastening.

    Characteristic

    Metal plug-in unit isolates particulate matter and protects elastomeric sealing ring. The elastomer seal ring has a large compensation available for great sealing effect.

    Application

    This structure is recommended to be used in medium or low pressure and medium caliber natural-gas-containing medium with frequent opening and closing.The recommended dimensions of Tengbo are DN150-DN400, pressure grade PN16-PN40,Class150-Class300.

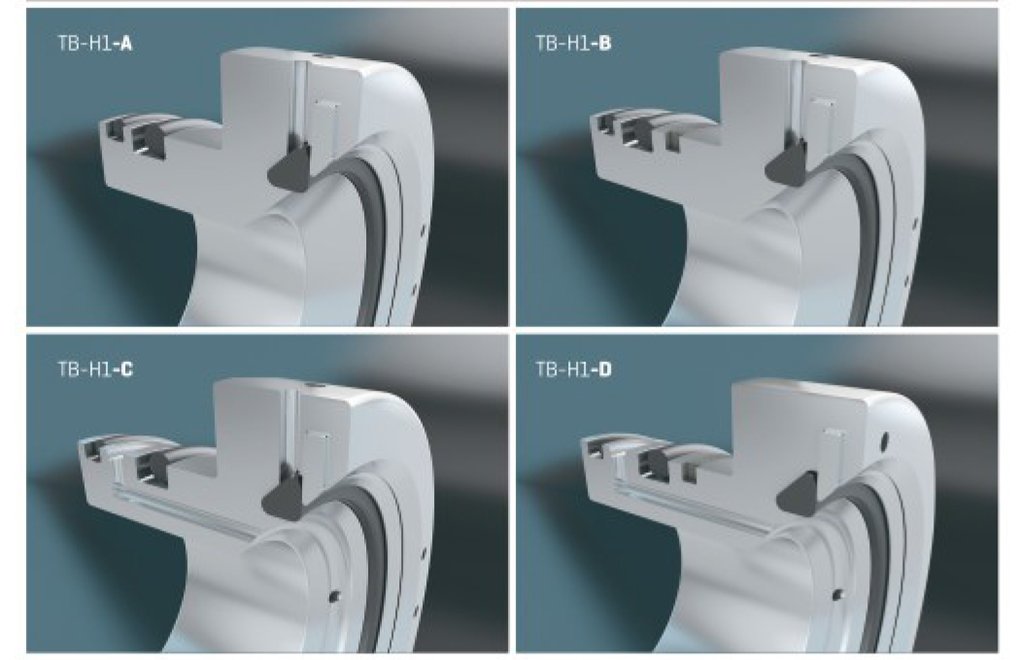

    Product Structure
